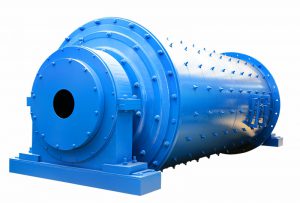

Ball mill machine

Application Field Of Ball Mill Machine

Grinding Ball mill Machine is one of the most variable and effective ball mill machines which is mainly applied for further grinding the crushed materials. Compared with other grinding mills, the variety of grinding modes, available grinding mineral materials, and flexible production capacity make ball mill grinders the perfect match for a vast range of applications, such as cement industry, new building material industry, refractory material industry, fertilizer industry, non-ferrous metal beneficiation, glass manufacturing industry, ceramic production industry, etc. It can grind hard, brittle, fibrous, and other grindable materials in dry method or wet method, effectively improve the utilization rate of the ground material and reduce the waste of resources.

Ball Mill Types

There are many types, models, and specifications of Grinding ball mill machine. Customers can select the right one according to the raw material property, discharge mode, production scale, and other factors.
We can customize various types of ball mill machine for sale! Besides, we optimize the combination of different ball mill grinders to meet the process requirement.
According to the production scale: small ball mill and large ball mill;
According to the discharge mode: grate discharge ball mill and overflow ball mill;
According to the equipment shape and placement method: cylindric ball mill, attritor ball mill, and conical ball mill；
According to the grinding medium and lining: ball grinding mill, rod mill, semi-autogenous mill, and autogenous mill;
According to the production mode: dry ball mill, wet ball mill, batch ball mill, and continuous ball mill.

【Grinding Media Ball Type】 Steel ball, manganese, chrome, ceramic ball, etc.

【Common Steel Ball Sizes】 40mm, 60mm, 80mm, 100mm, 120mm.

【Ball Mill Liner Type】 Natural rubber plate, High manganese steel plate, 50-130mm custom thickness.

Overflow Ball Mill

Overflow ball mill is also called overflow type ball mill. It is a kind of wet ball mill grinder, frequently used in the material refine grinding (finished material is lower than 0.2mm) or the second stage grinding.

Rod Mill

Rod mill is a commonly used grinding machine, which is named after the steel rod (grinding media) loaded in the cylinder. It can be divided into the wet grinding type and dry grinding type, suitable for fine crushing and coarse grinding of various brittle materials.

Grate Discharge Ball Mill

Grate discharge ball mill is also called grate ball mill. It is often used in the first stage of two-stage grinding to dry or wet grind various ores and other grindable materials. Compared with overflow ball mill, grate ball mill is a type of ball mill grinder that can realize forced ore discharging by grid lining plate and fan-shaped chamber.

Ceramic Ball Mill

The ceramic ball mill is a kind of ball mill grinder that the liner plate is made of wear-resistant ceramics. It has a small capacity, suitable for small batch production, and it can realize a 24-hour continuous work with dry grinding or wet grinding.

Coal Mill

The coal grinding ball mill is a typical grinding equipment. The equipment is developed with advanced technology, so it has more functions, more reliable performance, and has certain advantages in structure, operation, and use.

Batch Ball Mill

The batch ball mill, also known as batch type ball mill, is a commonly used ball mill grinder. It adopts the production mode of intermittent operation. Each time of feeding and discharging, the operation needs to be suspended. Users can control the grinding fineness by adjusting the grinding time.

Cement Ball Mill

Cement ball mill is a kind of ball mill grinder. It is mostly used for grinding cement clinker and raw materials in cement plants and is also suitable for grinding various ores and other grindable materials. Cement ball mills can be applied in the open-circuit grinding system and the closed-circuit grinding system. If combined with roller press, the productivity will be greatly improved.

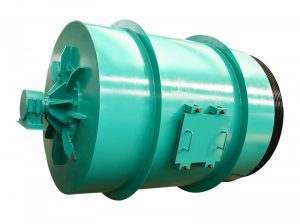

Tyre Driven Ball Mill

Tire driven ball mill is mainly applicable to the dry and wet grinding of power and mineral industries; Due to the tire driven mode, the ball mill lining plate generally adopts the rubber lining plate with light weight, low noise and high wear resistance coefficient, and the manganese steel lining plate can also be used according to the actual situation.
