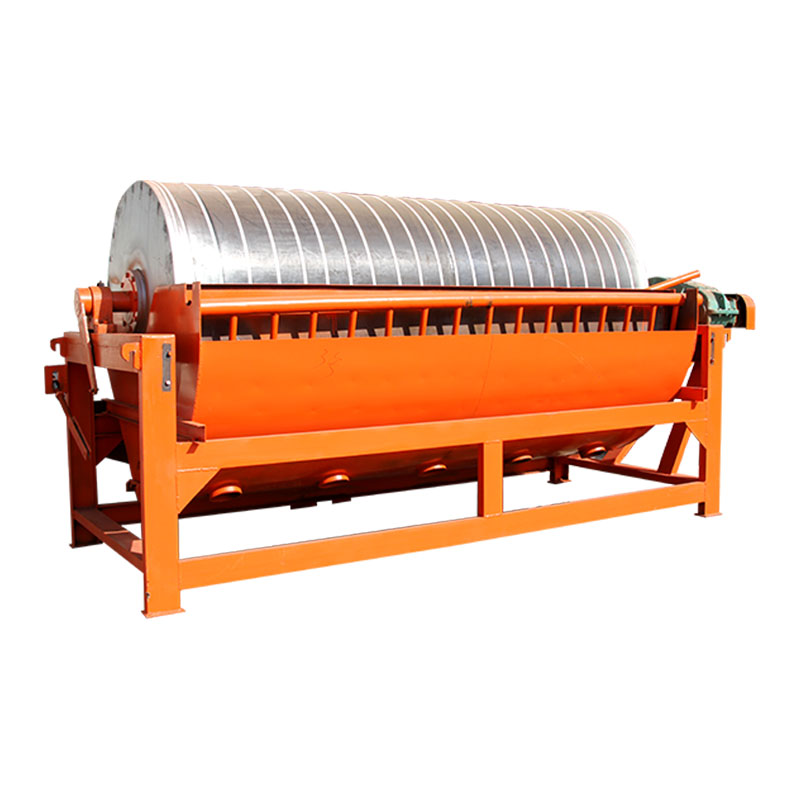

Magnetic Separator Machine
【What’s the Magnetic Separator machine?】
The magnetic separator is suitable for wet magnetic separation of magnetite, pyrrhotite, roasted ore, ilmenite and other materials with a particle size of less than 3mm. It is also used for iron removal of coal, non-metallic ore, building materials and other materials. The magnetic system of the magnetic separator is made of high-quality ferrite material or composite with rare earth magnetic steel. The average magnetic induction strength of the cylinder surface is 100-600mt. According to the needs of users, we can provide a variety of magnetic separation with different surface strengths, such as forward flow, semi reverse flow and reverse flow. Red Star machine magnetic separation equipment has the advantages of simple structure, large processing capacity, convenient operation and easy maintenance.
Magnetic separators can be divided into permanent magnetic separators and electromagnetic iron separators according to the types of magnets; According to the drying and wetting of mineral processing, it can be divided into dry type iron remover and wet type iron remover; According to different magnetic systems, it can be divided into drum magnetic separator, roller magnetic separator and drum roller magnetic separator; According to different structures, it can be divided into single cylinder, double cylinder and combined multi cylinder magnetic separators; It is divided into upper feeding magnetic separator and lower feeding magnetic separator according to the ore feeding mode; According to the different magnetic field strength, it can be divided into weak magnetic separator, medium magnetic separator and strong magnetic separator.
【Feature of Magnetic Separator Machine】
1.The magnetic field distribution is reasonable, long-term use without demagnetization;
2.The tank design is the computer simulation of fluid , effectively prevent the slurry precipitation blocking;
3.Magnetic adjustment is convenient and reliable, no magnetic leakage to the spindle, bearing smooth operation, long usage.
Magnetic Separator Structure
【Magnetic Separator Parts】The magnetic separator is mainly composed of cylinder, magnetic system, tank body and transmission part. The cylinder is made of 2-3mm stainless steel plate and welded into a cylinder. The end cap is made of cast aluminum and is connected to the cylinder with stainless steel screws. The motor drives the cylinder to rotate through a reducer.
【Working Principle of Magnetic Separator】When the slurry enters the magnetic field area through the feeding hopper, the strong magnetic minerals are absorbed on the surface of the cylinder, while the weak magnetic and non-magnetic minerals are washed out by the water flow, while the magnetic minerals adsorbed on the surface of the cylinder rotate with the cylinder and are taken out of the magnetic field area, and the washing water is used to flush into the concentrate tank to complete the separation.
Magnetic Separator Technical Parameter
Model | Dia of Drum（mm） | Length of drum（mm） | RPM（r/min） | Feed Size（mm） | Capacity（t/h） | Power（kw） |
CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
CTB1530 | 1500 | 3000 | <14 | 3-0 | 170-280 | 11 |
