Impact Crusher
【What’s the Impact Crusher?】Impact crusher (impact break) is an perfect crushing machine for medium hardness materials, it can produce a greater uniform particle shape (cubical) final product compared with the hammer crusher. Impact crushers are extensively used in the aggregate enterprise (cement, asphalt, sand & gravel), owing to high reduction ratios and precisely shaped, cubical give up products. Impact crushers can be set in any stage of the crushing circuit from primary crushing to the remaining step of the crushing process.
【Types of Impact Crusher】Common types have horizontal shaft impact crusher (HSI) and vertical shaft impact crusher (VSI). Besides, designed stationary and mobile impact crushers (track, wheel) for different applications.
【Impact Crusher Manufacture】Compared with the well-known impact crusher manufacturers like Sandvik, we have unique advantages. Lower price, complete spare parts, installation engineer & instruction manual, crushing plant design. Contact us to quickly get the impact crusher specifications and price.

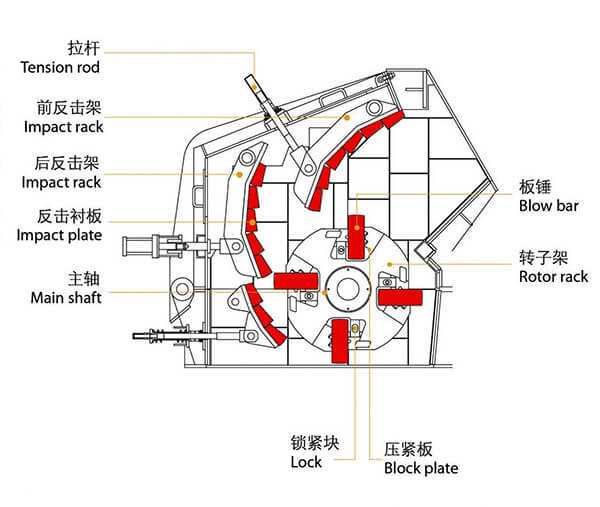

Impact Crusher Structure
【Impact Crusher Parts】Hopper body, cascade cylinders, feed tubes, crushing chamber, crusher base; often replaced wear parts are worn plates, blow bars, breaker plates, etc.
【Impact Crusher Working Principle】Impact crusher is a machine that breaks materials using the impact of energy. The rotor rotates of our impact crusher with a high speed driven by a motor. When the materials get into the hammer effect area, they are impacting to break with the hammer on the rotor and then threw to the impacting position to take another crushing. After that, they spring back to the hammer impacting area from the impact wrist plate to take crushing again. This procedure repeats itself. The materials get into 1, 2, 3 impact cavities from big to small to take repeated crushing. When the material is crushed to the required size, it’s discharged from the outlet. The material’s discharging size and shape can be changed by adjusting the gap between the impact frame and rotator.
Impact Crusher Technical Parameter
Model | Specification | Feed | The Maximum | Capacity | Power | Overall | Total |
PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 4P 37-45 | 2330×1660×2300 | 12 |
PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 4P 45-55 | 2370×1700×2390 | 15 |
PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 6P 110 | 2680×2160×2800 | 17.7 |
PF-1214 | Φ1250×1400 | 400×1430 | 350 | 80-180 | 6P 132 | 2650×2460×2800 | 22.4 |
PF-1315 | Φ1320×1500 | 860×1520 | 500 | 100-280 | 6P 200 | 3180×2720×3120 | 27 |
PF-1320 | Φ1300×2000 | 993×2000 | 500 | 140-380 | 6P 250 | 3220×3100×3120 | 34 |
PF-1520 | Φ1500×2000 | 830×2040 | 700 | 200-550 | 4P 315-400 | 3959×3564×3330 | 50.6 |
PF-1820 | Φ1800×2000 | 1260×2040 | 800 | 400-800 | 4P 630-710 | 4400×3866×4009 | 83.21 |
